Working principle of barrel water filling machine:

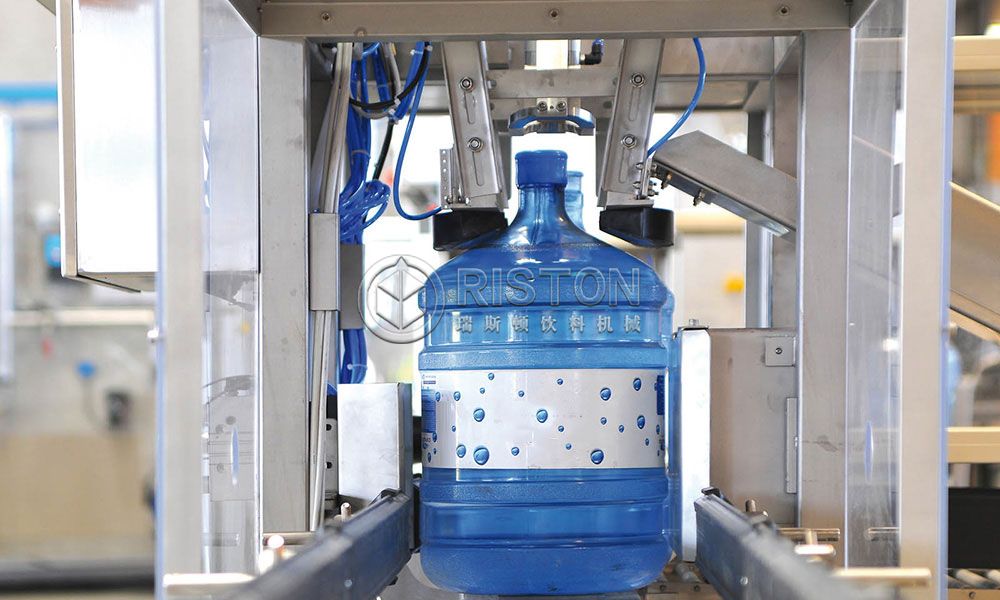

After the conveyor line starts to run, the empty barrel enters the capping area by the conveying force. When the barrel is detected by the photoelectricity, the signal is input to the programmable controller (PLC) and the capping cylinder, so that the capping machine pulls out the cap and the bottom Leave the conveyor belt surface and move up through the PLC.
After the cover is pulled out, after the structure is opened, the blowing device blows air and blows the bucket cover into the collector. As soon as it enters the outer printing machine, the outer printing machine's drawing wheel and the main brush move relative to each other, continuously rotating, and the water pump keeps spraying water. After the bucket enters, under the action of the drawing wheel, it starts to rotate around the main brush, and the bucket rotates under the action of the bottom brush The barrel's all-round cleaning is completed.
After passing the outer brush, it enters the bucket conveying line. When the bucket reaches the bucket position, the bucket cylinder is extended, blocking the rear bucket, pushing the bucket cylinder, pushing the bucket into the bucket turning plate, and the bucket cylinder is further lifted and flipped Plate 45 degrees.
Under the action of the transmission mechanism, the main body of the bottled water filling machine directly moves through the gap, and each time, the nozzle sprays water for about 18 seconds, and the spray pump is a high-lift pump.
The shower room is divided into four areas: Clean water area, disinfectant area, water-carrying area, and sterile water area; spray water twice in each area to achieve true safety and hygiene.
After washing, the bucket falls over to the filling position, the number of filling heads is determined according to the output, and the filling time is adjusted. After the filling is completed, the bucket starts to press the lid, and the lid is automatically sorted.
