Spray Type Continuous Sterilization and Cooling Machine

Spray Type Continuous Sterilization and Cooling Machine equipment manufacturers product composition;

Spray Type Continuous Sterilization and Cooling Machine equipment manufacturers brand;

Spray Type Continuous Sterilization and Cooling Machine equipment flow chart.


Brief Introduction

It is mainly used for sterilization of beverages, liquid dairy products and alcohol packaging. It is thoroughly sterilized, clean, fast and efficient. Depending on the packaging properties of the product, depending on the physical characteristics of the product, depending on the acid-base characteristics of the product, and depending on the nutritional preservation characteristics of the product, each device is also very different in design and production. It is mainly made of stainless steel plate, strong and strong, and has excellent heat insulation and heat preservation performance. The manual setting system is fully automatic, and it can work continuously with a pipeline. The floor space is small, which greatly reduces the labor cost and saves space resources.


Production Description

1.The equipment rack is made of stainless steel, the overall structure is compact, and the appearance is hygienic and beautiful.

2.Sterilization temperature is controlled by PLC or PID, and various sterilization temperature display/recording modes are available.

3.Total processing time variable frequency control, can be adjusted according to production process.

4.The system components are all selected with high performance and high reliability. The system design attaches great importance to safety. The steam, hot water and materials all have pressure protection measures and alarm system.

5.The inner wall of the material pipe is polished with advanced technology Ra<0.4u, the pipe is welded with automatic welding, and the pipe design is all attached to the sanitary process without any dead angle, and the cleaning is thorough. The device can be self-sterilized throughout the process to ensure system sterility.

6.Short sterilization time ensures that the nutrients of the material are not destroyed.

7.Good heat transfer, high heat recovery rate, low energy consumption; material recovery rate of 90%.

8.The utility model has the advantages of simple structure, easy cleaning, convenient operation and low maintenance cost.

Spray Type Continuous Sterilization and Cooling Machine Spray Type Continuous Sterilization and Cooling Machine

RISTON Turnkey Project

Beverage Filling Machine Wholesale, Filling Machine Suppliers——RISTON BEVERAGE MACHINE. This beverage filling line consists of five steps: preform feeding, blowing, labeling, filling and cap feeding. Those five parts integrates into a single system, provide customers with continuous production optimization and performance enhancement.

Spray Type Continuous Sterilization and Cooling Machine

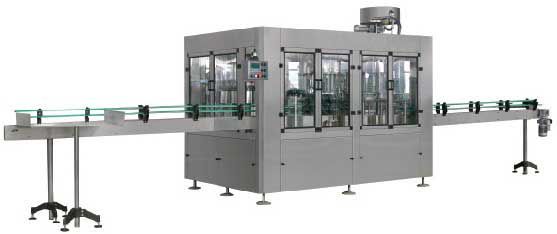

Plastic bottle juice filling machine:

RISTON plastic bottle juice filling machine is used to produce plastic bottled beverage within the volume from 200ml-2000ml,different models can satisfy various requirement of output from 1000BPH-36000BPH. Bottle washing,filling covering are realized by one machine.The whole machine is designed scientifically and reasonbly,the appearance is good looking,the maintenance and repair is rather convenient,the hang type bottle opening clipping transport bottle structure makes it more convenient,rapid and labor saving to change type of bottles.The main machine has applied advanced inverter control technique,the key electric parts are all products of world famous brands.This machine adopts perfect overload protective device that keep the machine and operator safely.

Spray Type Continuous Sterilization and Cooling Machine

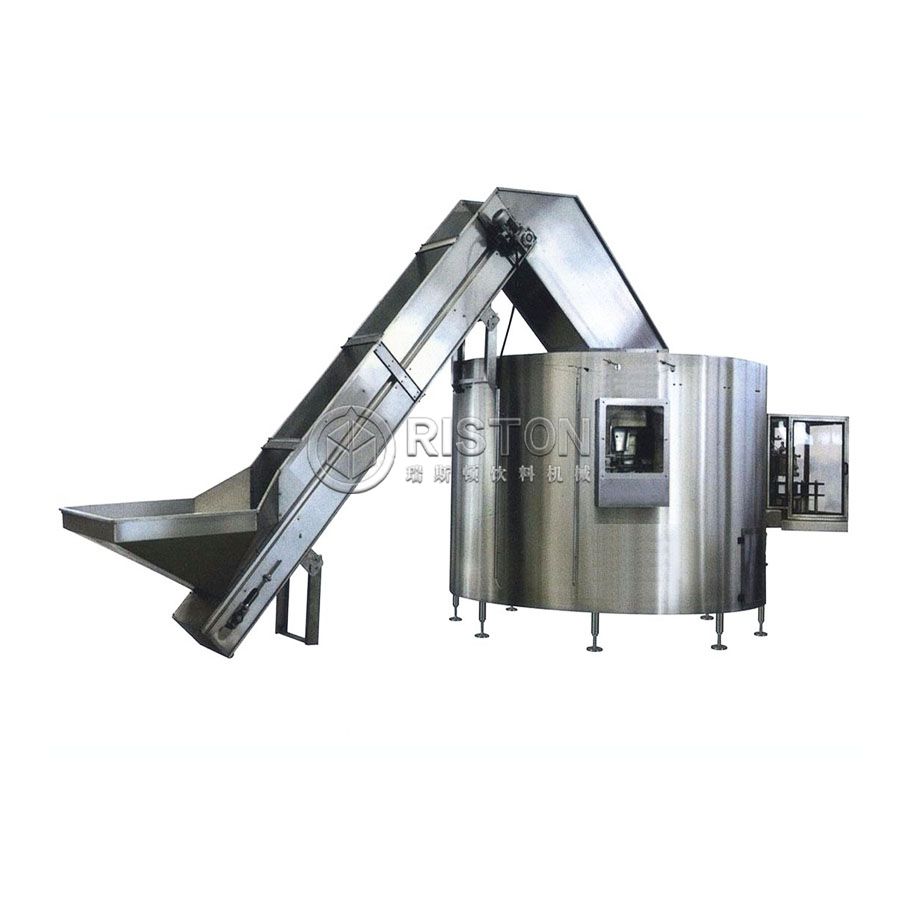

Bottle Unscrambler:

The plastic bottles are scattered and regularly arranged on the conveyor belt in a messy situation to meet the requirements of high automation. The function of the bottle sorting machine is to sort out the disorderly stacked beverage bottles and arrange them on the conveyor belt in sequence and direction, and transfer them to other machines at high speed and high efficiency for the next process (such as filling, labeling, packing, etc.), so as to improve the production efficiency of the whole production line.

Spray Type Continuous Sterilization and Cooling Machine

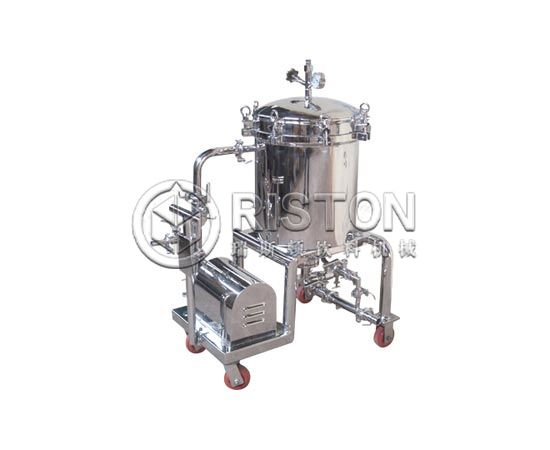

Sugar Syrup Filter:

The syrup filter can be used as a filter for juice, beverage and water to meet the requirements of the syrup filter medium. In addition to diatomaceous earth, the filter medium can also be made of perlite, activated carbon or the like.It is Widely used for the filtration of juice, beverages, beer, wine and water. All seals of the machine are made of high temperature resistant silicone parts (food grade).The stainless steel centrifugal pump uses a water-cooled mechanical seal to effectively extend the life of the mechanical seal.Less moving parts, low maintenance costs, only need to replace the seals.

Spray Type Continuous Sterilization and Cooling Machine

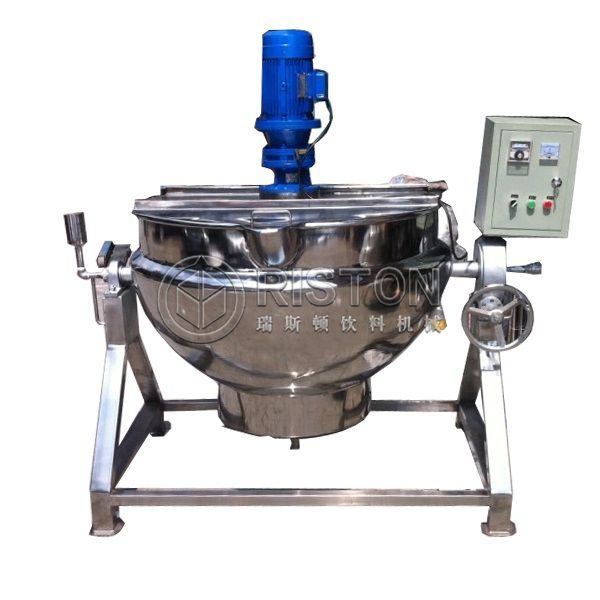

Sugar melting pot:

This sugar melting pot is made of acid-resistant and heat-resistant 304 stainless steel with safety valve and electric control box. Good appearance, easy to install, easy to operate, safe and reliable.It has large heating area, uniform heating, high thermal efficiency, short boiling time of liquid, and easy control of heating temperature. Widely used in food processing such as candy pharmacy, dairy wine, cakes, beverages, candied fruit, canned food, etc..The device consists of a cylindrical stainless steel inner cylinder head forming a heat transfer interlayer. The outside is polished with stainless steel and the surface is beautiful. The dissolved material and the cold water are placed in the pot, and the steam is introduced into the interlayer to achieve the purpose of heating and melting. A pressure gauge safety valve is placed on the pipe that communicates with the mezzanine to measure the pressure in the interlayer and to ensure safe production.

Spray Type Continuous Sterilization and Cooling Machine

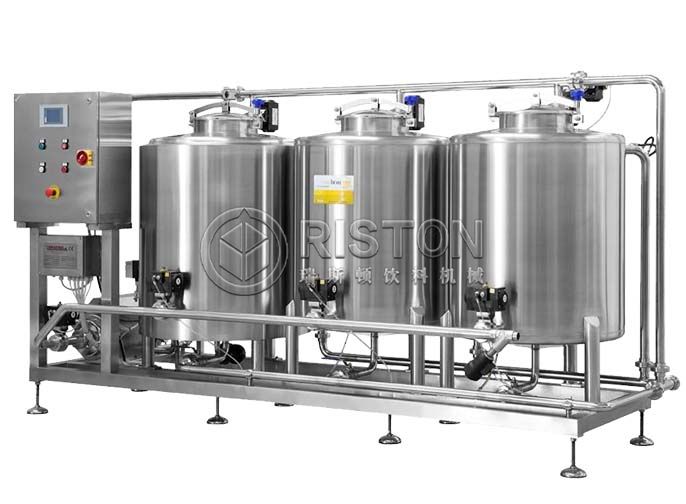

CIP System:

This Clean In Place system container tanks, pipes, pumps, filters, etc., and the entire production line, without the need for manual disassembly or opening, sprays a certain temperature of cleaning liquid through a closed pipe to the inner surface of the equipment within a predetermined time. To achieve the purpose of cleaning. CIP cleaning is also called cleaning positioning or positioning cleaning. In-situ cleaning refers to a method of washing the food and the required contact surface with a high-temperature, high-concentration cleaning solution without disassembling or moving the device.Compact design, easy installation, maintenance and commissioning; pneumatic components and electrical components are all imported materials, stable and reliable performance, modular structure with functional blocks, can be divided into manual control, automatic selection, touch screen prompt operation, intuitive and easy to understand.Remove drug residues, prevent microbial contamination, and avoid batch effects.Reduce cleaning costs and consume less water, cleaning agents and steam.

Spray Type Continuous Sterilization and Cooling Machine

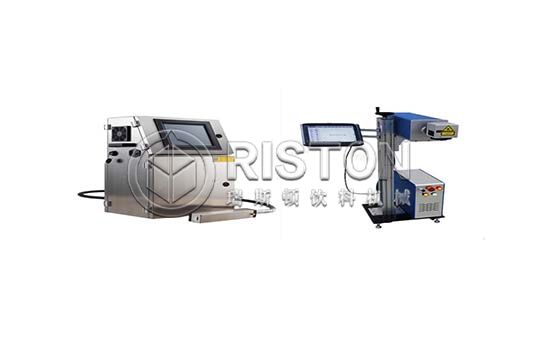

The Coding Machine:

This coding machine is a batch coding machine designed for high-speed applications and around the clock operation.It is the standard for high throughput coding applications in production environments around the world.Long running time between preventive maintenance up to 12,000 hour core life.Automatic cleaning print head for fast start ups, even after extended shutdown.Laser coding machine has higher coding speed. The coding speed can reach to 7000mm/s.Higher coding efficiency to integrate with different production lines. No consuming materials. You just need to change wearing parts occasionally, no pollution to environment.Easy to operate, having powerful software to make coding flexible and convenient.Long working lifetime, suitable for long and continuous working. Permanent signs and marks for stronger anti-fake functions. Laser coding machine is a cost-effective coding machine.

Spray Type Continuous Sterilization and Cooling Machine

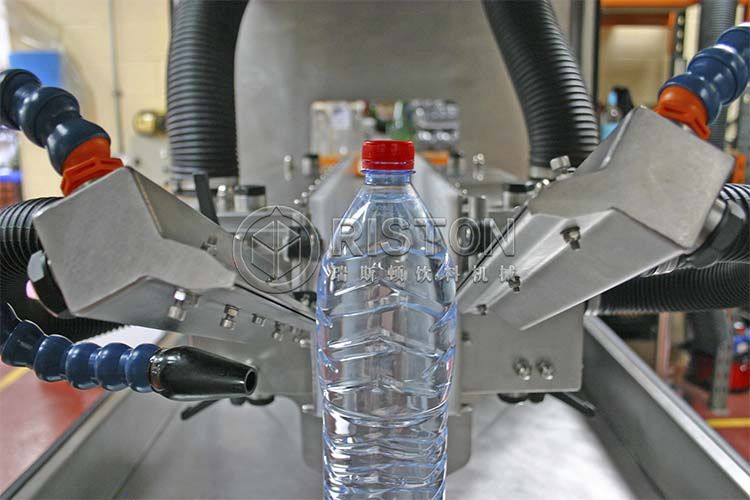

Blowing Dryer:

The automatic air knife dryer is mainly used to dry the bottle after filling , and then labeling.It uses a stirring hot fan and a circulating hot air knife. In addition to the environmental protection and energy saving advantages of the hot air circulation, it can directly heat, control the temperature, adjust the air volume and the wind direction, and achieve hot air drying more quickly and more uniformly. , heat shrinkage, heat treatment effect.

Spray Type Continuous Sterilization and Cooling Machine

Automatic packaging machine:

The packaging system is an intelligent automatic cartoning machine, which uses a high-speed distribution device to package various containers, packaging plastic flat bottles, round bottles, irregular shaped bottles, glass bottles of various sizes, round bottles, oval Bottles, square cans and paper cans, etc., are also applicable to boxes with partitions. The bottle body is clamped by the bottle holder and placed in the opened carton. When the gripper is lifted, the carton is discharged and sent to the sealing machine. The machine is controlled by a PLC touch screen. This assembly line is very convenient for operation, management, reduction of production personnel and labor intensity, and is an indispensable equipment for automated scale production.

Spray Type Continuous Sterilization and Cooling Machine

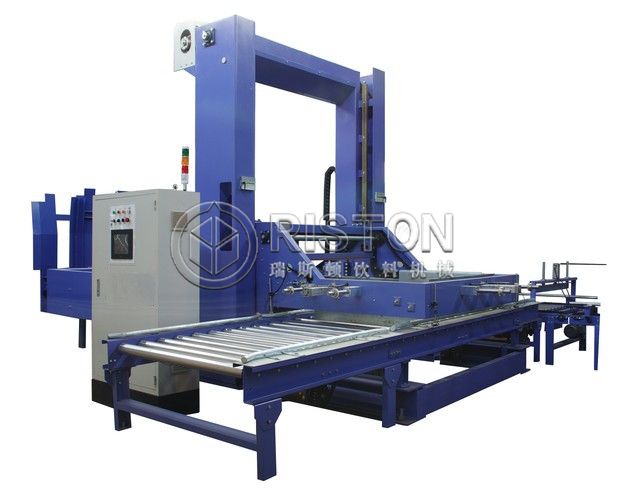

Palletizer:

The palletizer is a carton that has been loaded into a container, placed on a pallet, a pallet (wood, plastic) according to a certain arrangement code, and automatically stacked, can be stacked in multiple layers, and then pushed out, so that the forklift can be transported to the warehouse for storage. This equipment adopts PLC+ touch screen control to realize intelligent operation management, which is simple and easy to master. Can greatly reduce labor and reduce labor intensity. The palletizing machine is a device that automatically transports the material bags, cartons or other packaging materials conveyed by the conveyor into the crucible according to the working mode of the customer's process, and transports the material into the crucible.

Spray Type Continuous Sterilization and Cooling Machine

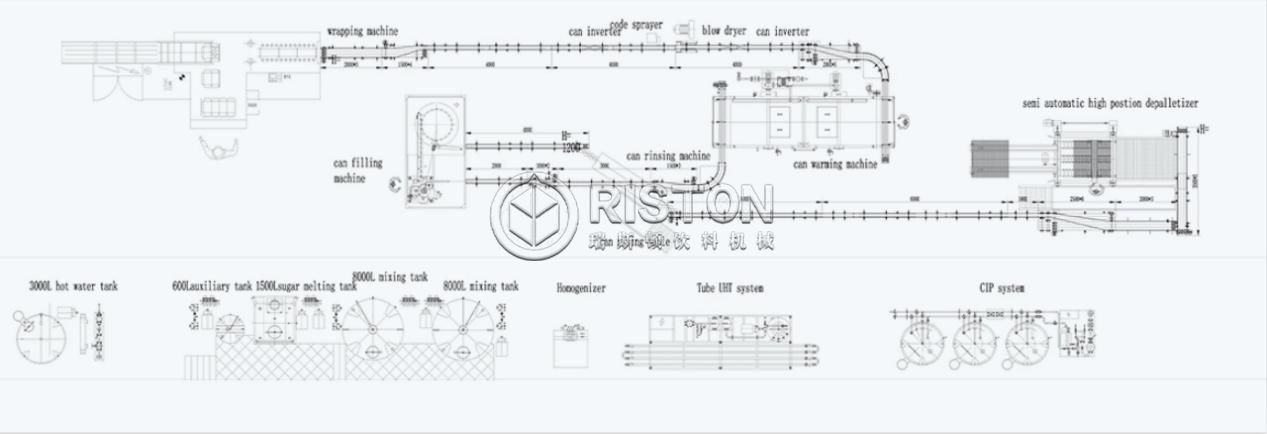

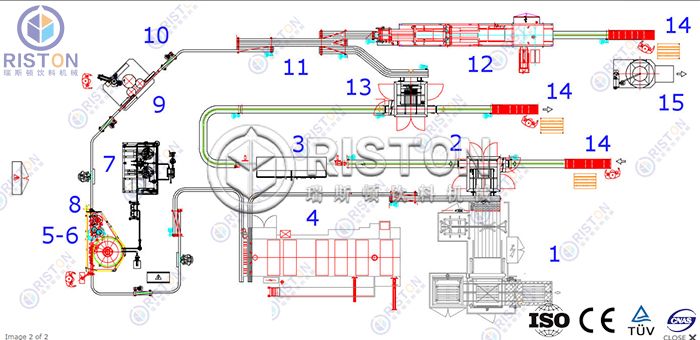

CAD Configurations:

Spray Type Continuous Sterilization and Cooling Machine

Spray Type Continuous Sterilization and Cooling Machine

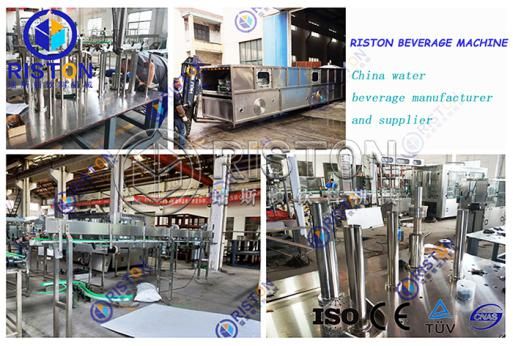

Our Factory:

Spray Type Continuous Sterilization and Cooling Machine

    ZHANGJIAGANG RISTON BEVERAGE MACHINE CO.,LTD is located in the Yangtze river delta region in the south of jiangsu golden waterway, specializing in the production of complete sets of water filling equipment, fruit juice filling equipment, carbonated beverage filling equipment, labeling & packaging equipment, bottle blowing equipment, drinking water treatment equipment, and kinds of auxiliary machines and so on.

    In order to meet different demand of domestic and abroad water beverage beer industry, RISTON company develop varieties of intelligent full automatic filling production line. Machine system development force is strong; Machine system design is advanced; Spare parts of the machines are high precision; Before-sales and after-sales service is perfect. We have a clear division of labor in the organizational structure and a positive culture. RISTON will provide you a complete set of turn-key project, make you save time save labor save money.

    RISTON can Provide the Whole Factory Design, Machine Manufacture, Installation & Debugging, Beverage Formula, Production Instruction, Technician Training, Purification workshop planning, After-sales Maintenance, Lifelong Technical Support One-stop Service and turn-key project.

    If you want to produce high quality water or beverage, please choose RISTON beverage machine, RISTON can make you realize the lowest ownership cost, the longest machinery use life, make your water or beverage be inexhaustible wealth.
