Brief Introduction

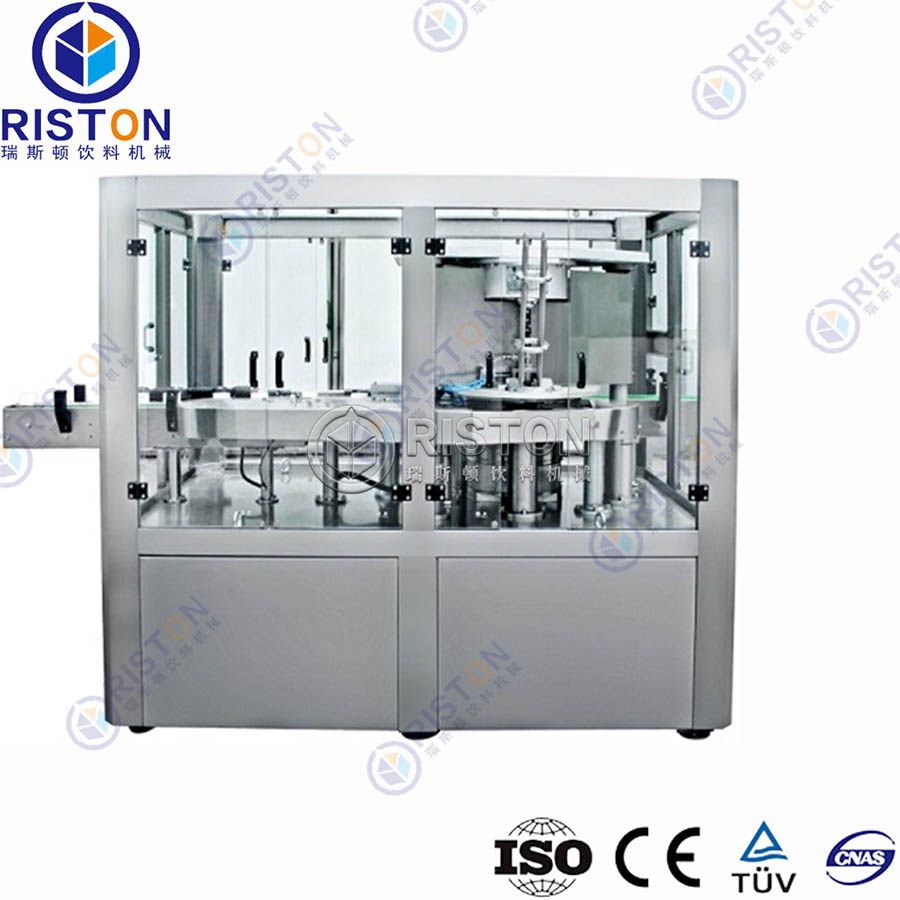

This China automatic tinplate can filling and sealing machine, manufactured by RISTON beverage machine is mainly used in coconut milk, walnut milk,porridge, Hydrogen water, pure water ,mineral water and some non-carbonated drinks etc.. The driving system will be transmitted step by step which makes the speed more stable.The conveyor will adjust the transferring speed according to the machine’s working condition in order to keep the cans stable and no crashing occurs.

Production Description

1. This beverage can filling machine adopts normal pressure filling principle. After passing through the dialing wheel, the empty can will access the lift can supporting disc, and the filling valve is aligned with the empty can, which will rise for sealing. In the meanwhile, the valve port of the filling valve is automatically opened. When the filling cans are conveyed to the sealing machine head by the hook chain. The cap will be sent onto the can mouth by the cap rises, the pressing head presses the can mouth, the sealing wheel carries out pre-sealing and then real sealing. After it is sealed, the can is pushed out by the beating head of the cap beating mechanism and then enters into the can discharging procedure. RISTON is Beverage Filling Machine Wholesale, Filling Machine Suppliers for 18 years, and we can offer you good machines with nice price.

2. This tin can filling machine consists of filling machine, and capping machine in one frame. It can reduce the touch time between materials and outside, in the meanwhile,  the sanitary conditions, production capacity and economic efficiency can be greatly improved.

3.Capacity of this can filling and seaming machine is from 2000 to 36000 can per hour, based on 60ml-1000ml.

4. This water and drinks filling machine adopts one driving system, which makes the filling speed more faster and stabler.

Tin Can Filling Machine Tin Can Filling Machine

5. The filling valve applies piston type filling valve, which make the liquid level more precise and without liquid lost.

6. All materials contact with beverage are made of stainless steel 304, adopts PLC control and touch screen, easy to operation, one operator is required. All electrical parts use famous well-known brand.

7. More compact noisy reducing motor is adopted, and little noise while running.

8. No can no filling, when cans are cramped wrongly or are not available, the machine will stop automatically.

Tin Can Filling Machine Tin Can Filling Machine


RISTON Turnkey Project

Beverage Filling Machine Wholesale, Filling Machine Suppliers——RISTON BEVERAGE MACHINE. This beverage filling line consists of five steps: preform feeding, blowing, labeling, filling and cap feeding. Those five parts integrates into a single system, provide customers with continuous production optimization and performance enhancement.

Tin Can Filling Machine

Chiller:

It is used for high-speed cooling after food processing to adapt it to packaging requirements. There is also a temperature for controlling the fermented food.The chiller is a cooling water device that provides constant temperature, constant current and constant pressure. The temperature of the chiller backwater should not be higher than 40 degrees. The higher the return water temperature, the greater the damage to the compressor. The operation of the chiller system is through three interrelated systems of refrigerant circulation system, water circulation system and electrical automatic control system. The chiller is divided into a low temperature chiller and a normal temperature chiller in temperature control, and the normal temperature is generally controlled within a range of 0 to 35 degrees.

CO2 Carbonated Drink Mixer:

This Stainless Steel Automatic CO2 Carbonated Drink Mixer is used for Carbonated and proportion mixing of various carbonated beverages (water, syrup, carbon dioxide), such as lemon, cola, juice, wine, sparkling wine, etc., is the main equipment in beverage complete equipment (especially in medium and high-grade Key equipment for beverages.)This machine is low resistance loss, high efficiency, low energy consumption, simple structure, and reliable performance and low noise. Easy to adjust, the machine can easily adjust the output and the ratio of syrup to water without replacing other parts.This machine adopts carbon dioxide deoxidation to make deoxidized water have better pre-carbonization effect.This machine can easily adjust the gas content and adjust it according to the requirements of the gas content of the beverage through appropriate operation.The machine is equipped with a complete automatic control system, with the advantages of coordinated action, simple structure, continuous and high degree of automation.

Tin Can Filling Machine

Syrup Cooler:

The filtered syrup is injected into the syrup cooler, and the evaporator tube of the cooler is matched with the refrigeration unit with stirring. Reduce the syrup in the cooler to 3-5 ° C to ensure the mixed gas content of the beverage.

Tin Can Filling Machine

Mixing tank:

The mixing tank has the advantages of energy saving, corrosion resistance, strong production capacity, convenient cleaning and simple structure. It is mainly used for mixing of dairy products and sugar and other elements and various drugs. It is an indispensable equipment for dairy, beverage and pharmaceutical factories. It is used to mix the juice, concentrated juice that have already been taken out with other necessary ingredients such as sugar, flavor, food coloring, etc., and mix them, and add proportional pure water during the preparation process. The beverage can be evenly distributed, and no solidification of the particles occurs after the filling, so that the juice beverage can maintain the quality change without flocculation for a long period of time.All parts contact with beverage are made of stainless steel 304 material, it meets food grade hygiene requirements and is durable.Polished cylinder with a stirring paddle for stirring.

Tin Can Filling Machine

Sugar Syrup Filter:

The syrup filter can be used as a filter for juice, beverage and water to meet the requirements of the syrup filter medium. In addition to diatomaceous earth, the filter medium can also be made of perlite, activated carbon or the like.It is Widely used for the filtration of juice, beverages, beer, wine and water. All seals of the machine are made of high temperature resistant silicone parts (food grade).The stainless steel centrifugal pump uses a water-cooled mechanical seal to effectively extend the life of the mechanical seal.Less moving parts, low maintenance costs, only need to replace the seals.

Tin Can Filling Machine

Sugar melting pot:

This sugar melting pot is made of acid-resistant and heat-resistant 304 stainless steel with safety valve and electric control box. Good appearance, easy to install, easy to operate, safe and reliable.It has large heating area, uniform heating, high thermal efficiency, short boiling time of liquid, and easy control of heating temperature. Widely used in food processing such as candy pharmacy, dairy wine, cakes, beverages, candied fruit, canned food, etc..The device consists of a cylindrical stainless steel inner cylinder head forming a heat transfer interlayer. The outside is polished with stainless steel and the surface is beautiful. The dissolved material and the cold water are placed in the pot, and the steam is introduced into the interlayer to achieve the purpose of heating and melting. A pressure gauge safety valve is placed on the pipe that communicates with the mezzanine to measure the pressure in the interlayer and to ensure safe production.

Tin Can Filling Machine

CIP System:

This Clean In Place system container tanks, pipes, pumps, filters, etc., and the entire production line, without the need for manual disassembly or opening, sprays a certain temperature of cleaning liquid through a closed pipe to the inner surface of the equipment within a predetermined time. To achieve the purpose of cleaning. CIP cleaning is also called cleaning positioning or positioning cleaning. In-situ cleaning refers to a method of washing the food and the required contact surface with a high-temperature, high-concentration cleaning solution without disassembling or moving the device.Compact design, easy installation, maintenance and commissioning; pneumatic components and electrical components are all imported materials, stable and reliable performance, modular structure with functional blocks, can be divided into manual control, automatic selection, touch screen prompt operation, intuitive and easy to understand.Remove drug residues, prevent microbial contamination, and avoid batch effects.Reduce cleaning costs and consume less water, cleaning agents and steam.

Tin Can Filling Machine

Depalletizer:

This machine is mainly used in the emptying cans of tin cans and aluminum cans, three-piece cans, two-piece aluminum cans, and the empty cans stacked on the pallet from the top to the bottom, the layer is pushed onto the net conveyor,and then transported by a multi-row conveyor or turntable to a slide can washing machine or an automatic bottle washer instead of the manual draining tank ( Bottle), to improve production efficiency, which is suitable for the operation of the emptying cans of various sizes of tinplate cans and aluminum cans, and the PLC programmable computer automatically controls, is an ideal equipment for large and medium-sized beverage manufacturers.

Tin Can Filling Machine

Blowing Dryer:

The automatic air knife dryer is mainly used to dry the bottle after filling , and then labeling.It uses a stirring hot fan and a circulating hot air knife. In addition to the environmental protection and energy saving advantages of the hot air circulation, it can directly heat, control the temperature, adjust the air volume and the wind direction, and achieve hot air drying more quickly and more uniformly. , heat shrinkage, heat treatment effect.

Tin Can Filling Machine

The Coding Machine:

This coding machine is a batch coding machine designed for high-speed applications and around the clock operation.It is the standard for high throughput coding applications in production environments around the world.Long running time between preventive maintenance up to 12,000 hour core life.Automatic cleaning print head for fast start ups, even after extended shutdown.Laser coding machine has higher coding speed. The coding speed can reach to 7000mm/s.Higher coding efficiency to integrate with different production lines. No consuming materials. You just need to change wearing parts occasionally, no pollution to environment.Easy to operate, having powerful software to make coding flexible and convenient.Long working lifetime, suitable for long and continuous working. Permanent signs and marks for stronger anti-fake functions. Laser coding machine is a cost-effective coding machine.

Tinplate Cans Filling Machine Design

CAD Configurations:

Tinplate Cans Filling Machine Design

Tinplate Cans Filling Machine Design

Our Factory:

Tinplate Cans Filling Machine Design

    ZHANGJIAGANG RISTON BEVERAGE MACHINE CO.,LTD is located in the Yangtze river delta region in the south of jiangsu golden waterway, specializing in the production of complete sets of water filling equipment, fruit juice filling equipment, carbonated beverage filling equipment, labeling & packaging equipment, bottle blowing equipment, drinking water treatment equipment, and kinds of auxiliary machines and so on.

    In order to meet different demand of domestic and abroad water beverage beer industry, RISTON company develop varieties of intelligent full automatic filling production line. Machine system development force is strong; Machine system design is advanced; Spare parts of the machines are high precision; Before-sales and after-sales service is perfect. We have a clear division of labor in the organizational structure and a positive culture. RISTON will provide you a complete set of turn-key project, make you save time save labor save money.

    RISTON can Provide the Whole Factory Design, Machine Manufacture, Installation & Debugging, Beverage Formula, Production Instruction, Technician Training, Purification workshop planning, After-sales Maintenance, Lifelong Technical Support One-stop Service and turn-key project.

    If you want to produce high quality water or beverage, please choose RISTON beverage machine, RISTON can make you realize the lowest ownership cost, the longest machinery use life, make your water or beverage be inexhaustible wealth.
