3-10L Water Production Line

Brief introduction

RISTON is always by your side on every step of the way to build, maintain and improve your line performance. We insist on providing partners with advanced systems and technology, innovative design and considerate services to ensure you reach your business goals.

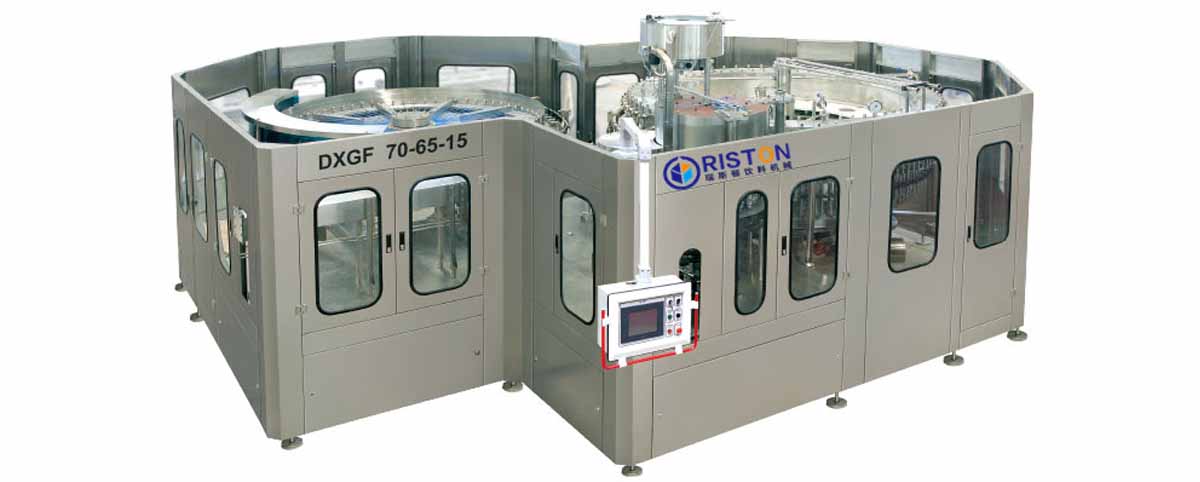

3-10L Water Production Line

Main Characteristics

1. Ensure high efficiency and performance rates in the long term for your water production lines and machines

2. Advanced and upgrading technology ensure the steady operation and limiting loss

3. With a large range of service products and services we offer you the best purchasing experiences.

3-10L Water Production Line

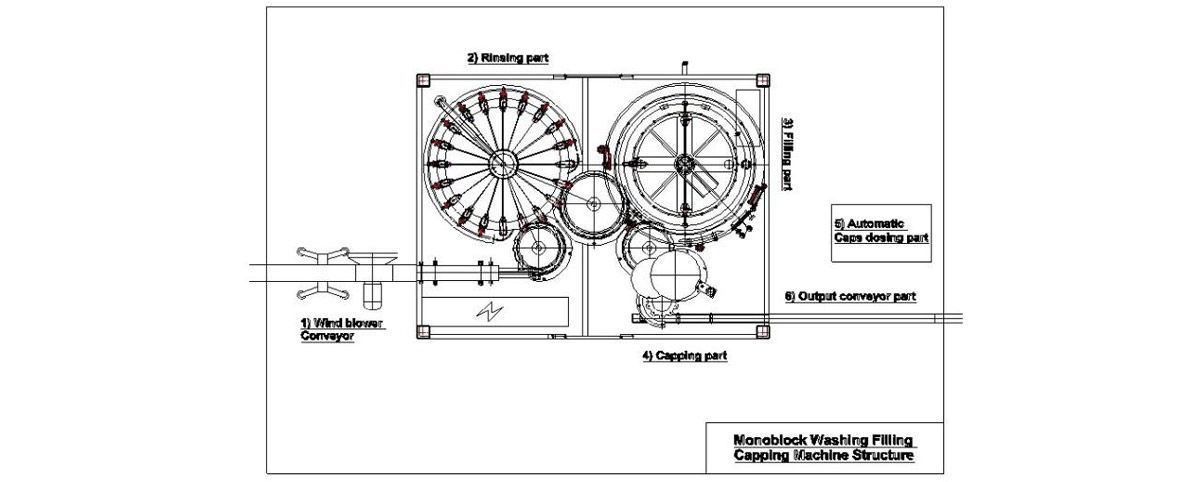

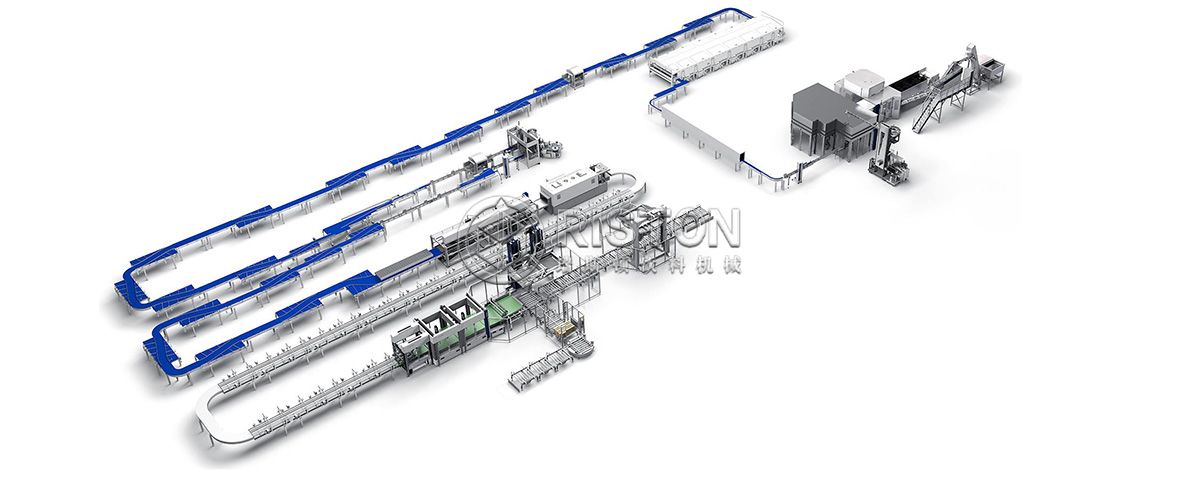

Production Line CAD Configuration

3-10L water production line

3-10L Water Production Line

Washing Part Filling Part Capping Part

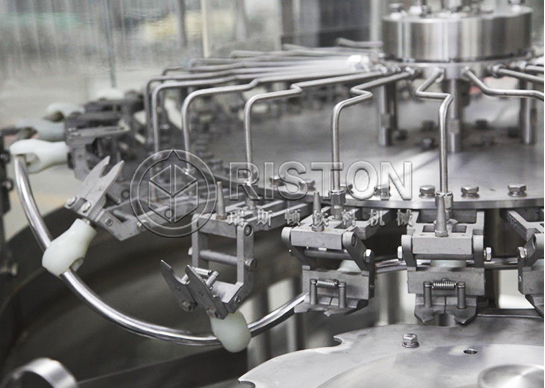

Washing Part

Washing Part:

1. Spring clamps are applied in the bottle washing unit.

2. Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.

3. Empty bottles can be turned over by 180 degrees along the conveying rail.

4. Two times of internal and external washing can guarantee the bottle washing quality.

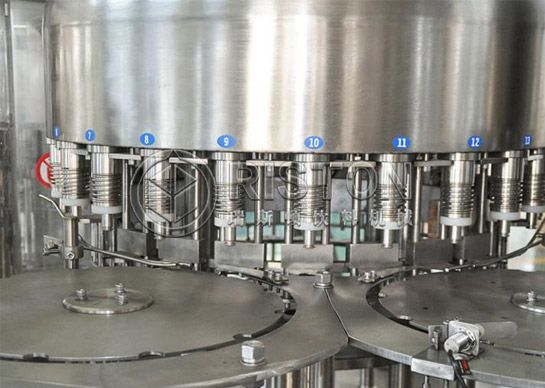

Filling Part

Filling Part:

1. No bottle, no filling safety device.

2. Machine construction in Stainless Steel 304.

3. PLC combined with touch screen control system. Filling volume can be easily adjusted.

4. No change parts are required for different bottle sizes.

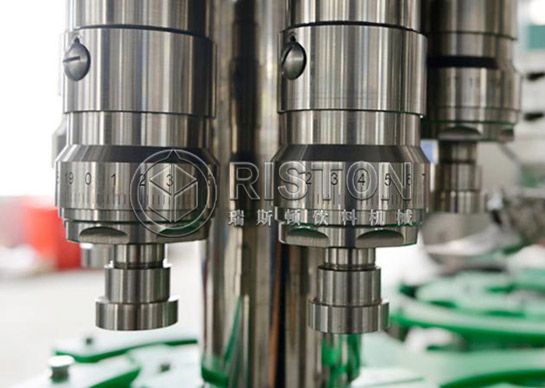

Capping Part

Capping Part:

1. Capping part is composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

2. In order to prevent cap from being scratched, and shortage of cap in Cap-Storing-Tank can be sensed out by sensors which can let out an alarming , air-powered horizontal swirl cap sorting device is applied in cap supplying process.

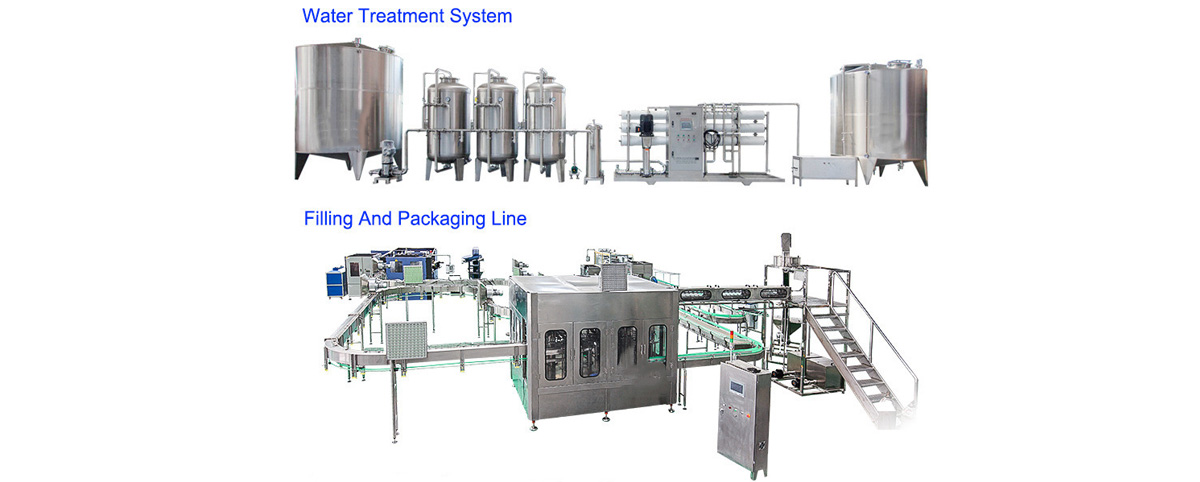

Water Treatment Part

3-10L water production line

Filter

Filter:

1.effectively get rid of muddy organic matter, color and smell, bacteria, and microorganism, heavy metal ion and chemical pollution contained in the raw water, reduce the hardness of the water to make all specifications of the water quality fully meet the state of fresh water standard of fresh drink water.

Precision Filter

Precision Filter:

1. Stainless steel high pressure film shell.

2. PP fusion spray filter element, wire-wound filter element, folding filter element, titanium filter element, activated carbon filter element, and other tubular filter elements are adoptable.

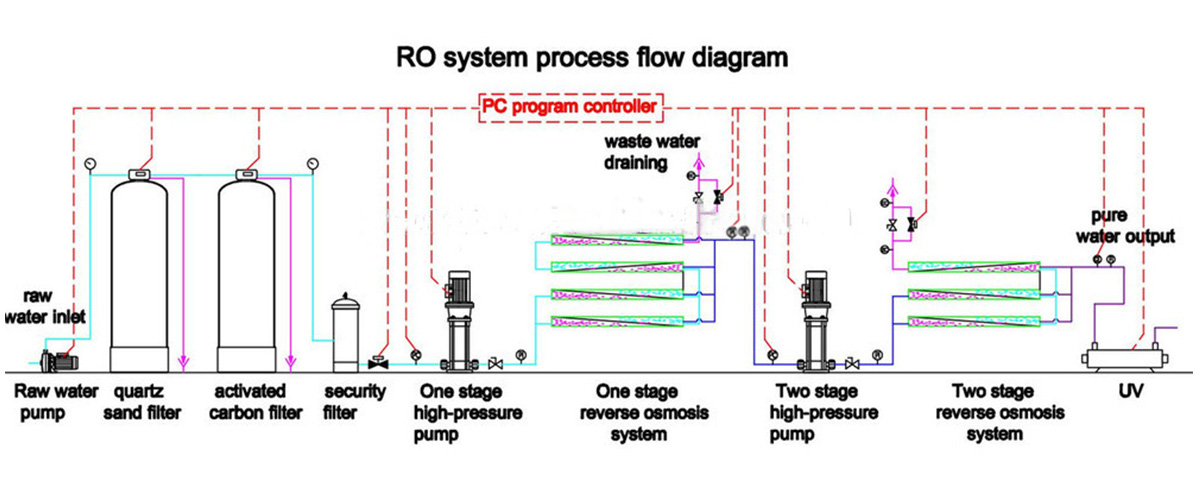

RO System

RO System:

1. All the parts contact with liquid made of 304 stainless steel 316 stainless steel on request ,The pump nead and suction & discharge can be made of cast iron on request too.

2. low energy consumption,no pollution, simple technique

3. remove more than 97% of the soluble salt and above 99% of the colloid miaroorganism particles and organic materials
